Aluminum Cut Wire

All products

Application areas

Deburring

Descaling

Blast Cleaning

Surface Improvement

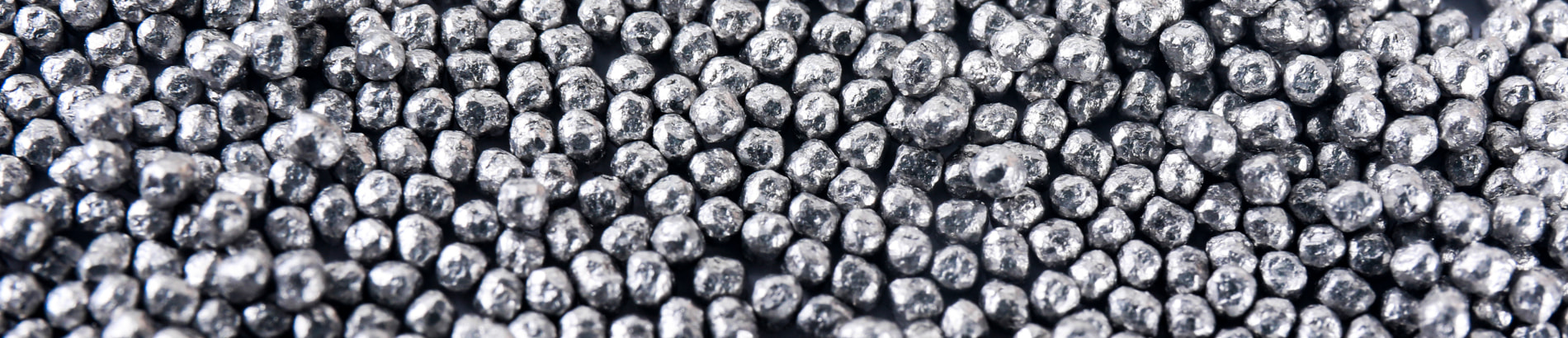

Aluminum Cut Wire is one kind of materials that can be reused many times and it is a preferred choice for the surface treatments of non-ferrous delicate parts and components in various industry applications.The lightweight and softer nature of Aluminum material helps to reduce the wear and tear for blasting machine spare parts, which can lower the overall costs and losts.It is non-sparking and can ensure a safer non-explosive working environment.Also, in comparison with Steel Cut Wire, Aluminum Cut Wire will not leave any steel residues which can later cause corrosion on workpieces.Since the material is electro-chemically neutral on aluminum and magnesium alloys, therefore it will prevent white corrosion and ensures the integrity of the components.

PRODUCT FEATURES
  • Material Grade
  • AW5056
  • AW6060
  • AW1070
  • AW5019
  • or upon inquiries
  • Pysical Properties
  • Hardness in VickersA5056 HV100-150
  • Hardness in VickersA6060 HV80-120
  • Hardness in VickersA1070 HV40-50
  • Grain ShapeZ/Conditioned(G2)
  • Specific Gravityca. 2,7g/cm³
  • Bulk Density*ca. 1,7 g/cm³
  • *the figure is depending on grain sizes
Specification

Φ0.4mm-Φ2.5mm

or upon inquiries

Standards

DIN EN 573-3

Packaging

25/12 kg bags on 1t pallets

1 ton loose in a big bag

1 ton in a steel drum

or upon inquires

Chemical Properties

000AW-5056 AW-6060 AW-1017

Si 0,30 – 0,60 % 0,30 – 0,60 % max. 0,16 %

Fe 0,10 – 0,70 % 0,10 – 0,30 % max. 0,16 %

Cu max. 0,10 % 0,10 % 0,01 %

Mn 0,10 – 0,60 % 0,10 %

Mg 3,00 – 7,00 % 0,35 – 0,60 %

Cr max. 0,30 % 0,05 %

Zn max. 0,30 % 0,15 %

Ti max. 0,30 % 0,10 %

Andere 0,15 % 0,10 % max. 0,026 %

Al the Rest the Rest the Rest
